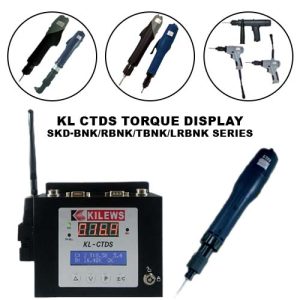

KL-CTDS Smart Industrial Torque Display
The KL-CTDS is an advanced smart torque display system designed for precision-critical assembly. It provides real-time torque monitoring, data recording, and error-proofing to ensure consistent tightening performance. Ideal for smart manufacturing, it enhances quality control and boosts productivity with user-friendly interface and seamless integration.
Description
FEATURES
● 4 Digits And 7 Segment Of Torque Display
● 16 X 2 LCM Display Settings
● Password And Key Control To Avoid Operator Adjusting Settings.
● Counting Preference Set Up (Count Up And Count Down)
● Slow Start Time 0.0-9.9 Sec
● Slow Start Speed (10%~90%,L1~L9)
● Workpiece In Place Sensor (On/Off)
● Set Up Fastening Thread Range
● I/O Signal (Mos-Relay)
● RS-232 Interface For Data Output, Storage And Use With Barcode Scanner
● 99 Data Storage
● Set Up Fastening Time Range
● Set Up Fastening Torque Range
● Error Code
● Auto Learning
● Change Torque Unit
● Offset Setting
● External Start
● External Reverse
● External Disable Tool
● External Confirm
SPECIFICATIONS
| Model | KL-CTDS |
| Input Voltage | DC32V/40V |
| I/O OUTPUT VOLTAGE | DC24V50mA/12V100mA |
| Count | 1-250 |
| Count method | Count-up／Count-down |
| Slow start setting time | 0~9.9 seconds |
| Slow start speed setting | L0:100%,10%~90% L1~L9 Rated speed |
| Detection stop time | 0.00~9.99 seconds |
| Detection torque value | 0.00-550.00kgf.cm |
| Detection screw thread number | 0.0~999.9 |
| External connection input | Start / Reverse / Disable / Confirm / |
| Cleared / Gate / Sequence cleared | |
| External connection output | OK／NG／OKALL／STOP |
| Serial interface | RS-232X2 |
| Assembly management | KL-DAS／KL-AMS |
| External dimensions | 155X120X60(mm) |
| Weight(g) | 630g |
| Accessories | Power cableX1 KeyX2 |
| Applicable Models | SKD-BNK200 series |
| SKD-BNK500 series | |
| SKD-BNK800 series | |
| SKD-BNK900 series | |
| SKD-RBNK series | |
| SKD-TBNK series | |
| SKD-LRBNK series |
| Model | Torque | Torque | Torque | Repeatable | Free Speed | Free Speed | Screw Size Dia | Screw Size Dia | Weight | Length | Power Controller | Bit Type |
| (kgf.cm) | (Lbf.in) | (N.m) | Torque | (r.p.m) | (r.p.m) | (mm) | (mm) | (g) | (mm) | |||
| Accuracy % | HI | LO | Machine Screw | Tapping Screw | ||||||||
| SKD-BNK203L | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | ±3% | 1000 | 700 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-BE32HL | B、C |
| SKD-BNK203 LS5 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | ±3% | 500 | 350 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-BE32HL | B、C |
| SKD-BNK203 LS6 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | ±3% | 370 | 260 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-BE32HL | B、C |
| SKD-BNK203LS7 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | ±3% | 230 | 160 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-BE32HL | B、C |
| SKD-BNK207L | 0.5~7 | 0.44~6.16 | 0.05~0.69 | ±3% | 1000 | 700 | 1.4~2.6 | 1.4~2.3 | 330 | 185 | SKP-BE32HL | B、C |
| SKD-BNK210L | 1~10 | 0.88~8.8 | 0.10~0.98 | ±3% | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 330 | 185 | SKP-BE32HL | B、C |
| SKD-BNK210P | 2~10 | 1.76~8.8 | 0.2~0.98 | ±3% | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 310 | 230 | SKP-BE32HL | B、C |
|
Model |
Torque (kgf.cm) |
Torque (Lbf.in) |
Torque (N.m) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (g) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-BNK203LM |
0.2~3.5 |
0.18~3.08 |
0.02~0.34 |
±3% |
1000 |
700 |
1.0~2.3 |
1.0~2.0 |
482 |
260 |
SKP-32BC-60W |
B、C |
|
SKD-BNK207LM |
0.5~7 |
0.44~6.16 |
0.05~0.69 |
±3% |
1000 |
700 |
1.4~2.6 |
1.4~2.3 |
482 |
260 |
SKP-32BC-60W |
B、C |
|
SKD-BNK210LM |
1~10 |
0.88~8.8 |
0.10~0.98 |
±3% |
1000 |
700 |
1.6~3.0 |
1.6~2.6 |
482 |
260 |
SKP-32BC-60W |
B、C |
|
Model |
Torque (kgf.cm) |
Torque (Lbf.in) |
Torque (N.m) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (g) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-BNK512L |
1.5~12 |
1.33~10.44 |
0.15~1.18 |
±3% |
1000 |
700 |
1.6~3.0 |
1.6~2.6 |
520 |
235 |
SKP-BE32HL |
A、B、C、D |
|
SKD-BNK512P |
2~12 |
1.76~10.56 |
0.19~1.18 |
±3% |
1000 |
700 |
1.6~3.0 |
1.6~2.6 |
520 |
235 |
SKP-BE32HL |
A、B、C、D |
|
SKD-BNK512LF |
1.5~12 |
1.32~10.56 |
0.15~1.18 |
±3% |
2000 |
– |
1.6~3.0 |
1.6~2.6 |
520 |
235 |
SKP-BE32HL |
A、B、C、D |
|
SKD-BNK512PF |
2~12 |
1.76~10.56 |
0.19~1.18 |
±3% |
2000 |
– |
1.6~3.0 |
1.6~2.6 |
520 |
235 |
SKP-BE32HL |
A、B、C、D |
|
SKD-BNK517LF |
3~17 |
2.64~14.96 |
0.29~1.67 |
±3% |
2000 |
– |
1.6~3.0 |
1.6~2.6 |
520 |
235 |
SKP-BE32HL |
A、B、C、D |
|
SKD-BNK517PF |
3~17 |
2.64~14.96 |
0.29~1.67 |
±3% |
2000 |
– |
1.6~3.0 |
1.6~2.6 |
520 |
235 |
SKP-BE32HL |
A、B、C、D |
|
SKD-BNK519L |
3~19 |
2.57~16.46 |
0.29~1.86 |
±3% |
1000 |
700 |
2.3~3.5 |
2.3~3.0 |
520 |
235 |
SKP-BE32HL) |
A、B、C、D |
|
SKD-BNK519P |
3~19 |
2.57~16.46 |
0.29~1.86 |
±3% |
1000 |
700 |
2.3~3.5 |
2.3~3.0 |
520 |
235 |
SKP-BE32HL) |
A、B、C、D |
|
Model |
Torque (kgf.cm) |
Torque (Lbf.in) |
Torque (N.m) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (g) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-BNK512LM |
2.5~12 |
2.2~10.44 |
0.25~1.18 |
±3% |
1000 |
700 |
1.6~3.0 |
1.6~2.6 |
740 |
323 |
SKP-32BC-60W |
A、B、D |
|
SKD-BNK512LFM |
2.5~12 |
2.2~10.44 |
0.25~1.18 |
±3% |
2000 |
– |
1.6~3.0 |
1.6~2.6 |
740 |
323 |
SKP-BE32HL |
A、B、D |
|
SKD-BNK517LFM |
5~17 |
4.34~14.96 |
0.49~1.67 |
±3% |
2000 |
– |
1.6~3.0 |
1.6~2.6 |
740 |
323 |
SKP-BE32HL |
A、B、D |
|
SKD-BNK519LM |
3~19 |
2.57~16.46 |
0.29~1.86 |
±3% |
1000 |
700 |
2.3~3.5 |
2.3~3.0 |
740 |
323 |
SKP-32BC-60W |
A、B、D |
|
Model |
Torque (N.m) (Hard Joint) |
Torque (N.m) (Soft Joint) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (g) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-BNK830L |
0.98~2.94 |
0.98~2.35 |
±3% |
1000 |
– |
2.6~4.0 |
2.6~3.5 |
836 |
278 |
SKP-40B-HL |
A、B |
|
SKD-BNK830P |
0.98~2.94 |
0.98~2.35 |
±3% |
1000 |
– |
2.6~4.0 |
2.6~3.5 |
836 |
278 |
SKP-40B-HL |
A、B |
|
SKD-BNK850L |
1.96~4.90 |
1.96~3.92 |
±3% |
1000 |
– |
4.0~5.0 |
＜－4 |
836 |
278 |
SKP-40B-HL |
B |
|
SKD-BNK850P |
1.96~4.90 |
1.96~3.92 |
±3% |
1000 |
– |
4.0~5.0 |
＜－4 |
836 |
278 |
SKP-40B-HL |
B |
|
Model |
Torque (N.m) (Hard Joint) |
Torque (N.m) (Soft Joint) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (g) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-BNK830LM |
0.98~2.94 |
0.98~2.35 |
±3% |
1000 |
– |
2.6~4.0 |
2.6~3.5 |
1135 |
340 |
SKP-40B-HL |
B |
|
SKD-BNK850LM |
1.96~4.90 |
1.96~3.92 |
±3% |
1000 |
– |
4.0~5.0 |
＜－4 |
1135 |
340 |
SKP-40B-HL |
B |
|
Model |
Torque (N.m) (Hard Joint) |
Torque (N.m) (Soft Joint) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (Kg) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-BNK960L |
2~6 |
2~4.8 |
±5% |
1000 |
– |
4.0~5.0 |
＜－4 |
1.03 |
308 |
SKP-40B-HL-800 |
B |
|
SKD-BNK960P |
2~6 |
2~4.8 |
±5% |
1000 |
|
4.0~5.0 |
＜－4 |
1.03 |
310 |
SKP-40B-HL-800 |
B |
|
SKD-BNK990L |
3~9 |
3~7.2 |
±5% |
1000 |
|
＜－6 |
＜－5 |
1.03 |
308 |
SKP-40B-HL-800 |
B |
|
SKD-BNK990P |
3~9 |
3~7.2 |
±5% |
1000 |
|
＜－6 |
＜－5 |
1.03 |
310 |
SKP-40B-HL-800 |
B |
|
SKD-BNK9120L |
6~12 |
6~9. 6 |
±5% |
880 |
|
＜－8 |
＜－6 |
1.03 |
308 |
SKP-40B-HL-800 |
B |
|
SKD-BNK9120P |
6~12 |
6~9.6 |
±5% |
880 |
|
＜－8 |
＜－6 |
1.03 |
310 |
SKP-40B-HL-800 |
B |
|
Model |
Torque (N.m) (Hard Joint) |
Torque (N.m) (Soft Joint) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (Kg) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-RBNK60L |
2~6 |
2~4.8 |
±5% |
1200 |
– |
4.0~5.0 |
＜－4 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK60P |
2~6 |
2~4.8 |
±5% |
1200 |
– |
4.0~5.0 |
＜－4 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK90L |
3~9 |
3~7.2 |
±5% |
900 |
– |
5.0~6.0 |
＜－4.5 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK90P |
3~9 |
3~7.2 |
±5% |
900 |
– |
5.0~6.0 |
＜－4.5 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK120L |
4~12 |
4~9.6 |
±5% |
600 |
– |
＜－8 |
＜－6 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK120P |
4~12 |
4~9.6 |
±5% |
600 |
– |
＜－8 |
＜－6 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK120LF |
4~12 |
4~9.6 |
±5% |
880 |
– |
＜－8 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK120PF |
4~12 |
4~9.6 |
±5% |
880 |
– |
＜－8 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK180L |
6~18 |
6~14.4 |
±5% |
370 |
– |
＜－10 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK180P |
6~18 |
6~14.4 |
±5% |
370 |
– |
＜－10 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK180LF |
6~18 |
6~14.4 |
±5% |
600 |
– |
＜－10 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK180PF |
6~18 |
6~14.4 |
±5% |
600 |
– |
＜－10 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK250L |
8~25 |
8~20 |
±5% |
370 |
– |
＜－10 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK250P |
8~25 |
8~20 |
±5% |
370 |
– |
＜－10 |
＜－8 |
1.25 |
315 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK250LF |
8~25 |
8~20 |
±5% |
550 |
– |
＜－10 |
＜－8 |
2.2 |
380 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK250PF |
8~25 |
8~20 |
±5% |
550 |
– |
＜－10 |
＜－8 |
2.2 |
380 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK350L |
12~35 |
12~28 |
±5% |
350 |
|
＜－12 |
＜－10 |
2.2 |
380 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK350P |
12~35 |
12~28 |
±5% |
350 |
|
＜－12 |
＜－10 |
2.2 |
380 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-RBNK500L |
20~50 |
20~40 |
±5% |
230 |
|
＜－14 |
＜－12 |
2.2 |
380 |
SKP-40B-HL-800 |
W1/2” |
|
SKD-RBNK500P |
20~50 |
20~40 |
±5% |
230 |
|
＜－14 |
＜－12 |
2.2 |
380 |
SKP-40B-HL-800 |
W1/2” |
|
Model |
Torque (N.m) (Hard Joint) |
Torque (N.m) (Soft Joint) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (Kg) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-LRBNK50 |
2~5 |
2~4 |
±5% |
1200 |
– |
＜－5 |
＜－4 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
SKD-LRBN75 |
3~7.5 |
3~6 |
±5% |
900 |
– |
＜－6 |
＜－4.5 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
SKD-LRBN100 |
6~10 |
6~8 |
±5% |
600 |
|
＜－8 |
＜－6 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
SKD-LRBN100F |
6~10 |
6~8 |
±5% |
880 |
|
＜－8 |
＜－6 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
SKD-LRBN150F |
8~15 |
8~12 |
±5% |
600 |
|
＜－10 |
＜－8 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
SKD-LRBN150 |
8~15 |
8~12 |
±5% |
370 |
|
＜－10 |
＜－8 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
SKD-LRBN220 |
12~22 |
12~17.6 |
±5% |
370 |
|
＜－10 |
＜－8 |
2.5 |
393 |
SKP-40B-HL-800 |
B9.5、W3/8” |
|
Model |
Torque (N.m) (Hard Joint) |
Torque (N.m) (Soft Joint) |
Repeatable Torque Accuracy (%) |
Free Speed (r.p.m) HI |
Free Speed (r.p.m) LO |
Screw Size Dia (mm) Machine Screw |
Screw Size Dia (mm) Tapping Screw |
Weight (Kg) |
Length (mm) |
Power Controller |
Bit Type |
|
SKD-TBNK20L |
0.3~2.0 |
0.3~1.6 |
±5% |
1200 |
– |
2.3~3.5 |
2.3~3.0 |
0.7 |
185×150 |
SKP-40B-HL |
A、B9.5 |
|
SKD-TBNK30L |
0.8~3.0 |
0.8~2.4 |
±5% |
1200 |
– |
2.6~4.0 |
2.6~3.5 |
0.7 |
185×150 |
SKP-40B-HL |
A、B9.5 |
|
SKD-TBNK50L |
2~5 |
2~4 |
±5% |
700 |
|
4.0~5.0 |
＜－4 |
0.7 |
185×150 |
SKP-40B-HL |
A、B9.5 |
|
SKD-TBNK30LF |
1~3 |
1~2.4 |
±5% |
3300 |
|
2.0~4.0 |
2.0~3.5 |
0.7 |
185×150 |
SKP-40B-HL-800 |
A、B9.5 |
|
SKD-TBNK35LF |
1.2~3.5 |
1.2~2.8 |
±5% |
1700 |
|
2.6~4.0 |
2.6~3.5 |
0.7 |
185×150 |
SKP-40B-HL-800 |
A、B9.5 |
|
SKD-TBNK50LF |
2~5 |
2~4 |
±5% |
1000 |
|
4.0~5.0 |
＜－4 |
0.7 |
185×150 |
SKP-40B-HL-800 |
B9.5 |
|
SKD-TBNK70L |
2.5~7 |
2.5~5.6 |
±5% |
850 |
|
5.0~6.0 |
＜－5 |
0.7 |
185×150 |
SKP-40B-HL-800 |
B9.5 |
|
SKD-TBNK60L |
2~6 |
2~4.8 |
±5% |
1000 |
|
4.0~5.0 |
＜－4 |
1.2 |
274×160 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-TBNK90L |
3~9 |
3~7.2 |
±5% |
800 |
|
5.0~6.0 |
＜－4.5 |
1.2 |
274×160 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-TBNK120L |
4~12 |
4~9.6 |
±5% |
550 |
|
＜－8 |
＜－6 |
1.2 |
274×160 |
SKP-40B-HL-800 |
B、W3/8” |
|
SKD-TBNK180L |
6~18 |
6~14.4 |
±5% |
350 |
|
＜－10 |
＜－8 |
1.2 |
274×160 |
SKP-40B-HL-800 |
B、W3/8” |
Reviews
There are no reviews yet.
